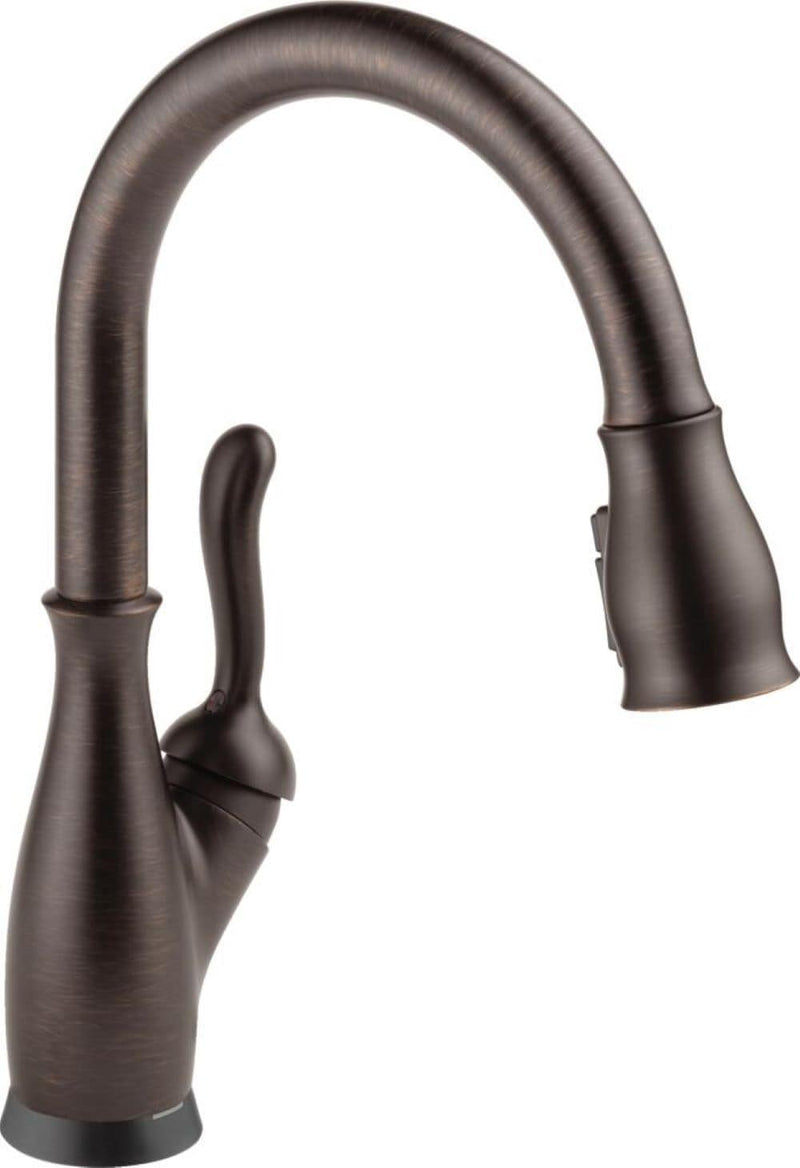

Leland Touch2O Technology Kitchen Faucet with Touchless Technology in Venetian Bronze

Choosing this faucet

Use the complete model number 9178TL-RB-DST when comparing this kitchen faucet with other fixtures. The finish suffix and feature suffixes help distinguish similar looking products, so compare the exact model rather than only the collection name. Choose around the tasks performed at this sink: filling containers, rinsing produce or washing dishes. Compare the spout position with the bowl center and consider how the handle will be reached.

For a secondary prep sink, use the actual bowl dimensions rather than assuming a smaller countertop requires a particular faucet size. Use the product details and specifications above to narrow the choice, then compare the manufacturer drawing with the space where the fixture will be installed. Check the actual item photos and current listing information for the unit you are considering.

A model reference image shows the design; it does not establish the condition or contents of an individual item. Think about how the fixture will be used by everyone in the household, and where frequently used containers or dishes will sit during filling or rinsing.

Can the touchless sensitivity be changed or switched off? Close the handle and hold the base for six seconds to cycle modes. Reopen the handle afterward. Five blue flashes indicate high sensitivity, four purple flashes low sensitivity, and three red flashes touchless off. Delta recommends high sensitivity for stainless steel or granite, and low sensitivity for porcelain, acrylic, quartz, laminate or Corian.

Where should I place my hand for touchless operation? The sensing zone extends about four inches from the spout, base or handle, with the strongest response beneath the spout's arc. It detects a person rather than a container, and the pull-down wand is outside the activation zone. Keep the handle open for electronic control.

A finger, wrist or forearm can also tap the fixed faucet surfaces to start or stop water. For a replacement project, decide which parts of the existing setup will stay: the sink, countertop, drain, water treatment equipment and supply valves can each affect the final choice.

Write down the problem you want the new fixture to solve, such as reaching a different part of the bowl or making the controls easier to reach. Compare that goal with the exact model features above. Consider the objects that are routinely brought to this sink, including tall bottles, trays or large bowls. Check whether they fit under the outlet or whether a movable wand would need to be used.

The bowl depth and faucet position work together, so compare the actual dimensions of both when planning a comfortable filling area. Think about how the sink area will be used when more than one person is working nearby. Check whether the handle, outlet and any separate accessory can be reached without moving other frequently used items.

Plan a convenient place for cleaning supplies that keeps the faucet base visible and does not obstruct normal operation.

Planning the sink layout

Measure the mounting holes, countertop thickness and space between the faucet and backsplash. Check the full handle movement and the clearance under nearby cabinets or shelves. If the model has a moving spray wand, leave a clear path beneath the sink for the hose and its return movement. A useful planning sketch shows the mounting position, bowl outline, nearby fittings and plumbing route.

Measure from the finished surfaces that will remain after the project, including tile, a new backsplash or a replacement countertop. Compare spout reach and overall height as separate dimensions; the height of the outlet is different again. Do not rely on the apparent size in a product photo. If covering unused mounting holes is part of the plan, check the exact accessory and its dimensions before drilling or ordering.

Keep enough space to tighten the mounting hardware and to reach the connections with suitable tools. Resolve fit questions before removing the existing fixture, particularly where the sink or countertop cannot easily be modified.

Which mounting dimensions should I check first? Compare the sink's holes with the Leland family drawing: it shows 1-3/8-inch holes and eight-inch centers for three-hole mounting. Delta specifies a minimum 2-1/2-inch clearance to the backsplash. Check the space behind the faucet and the positions of other fittings alongside the selected mounting arrangement. Check both the space above the sink and the space below it.

A cabinet shelf, garbage disposal or storage organizer may restrict access even when the countertop has room for the faucet. Make a simple cardboard outline from the manufacturer drawing if the position is difficult to visualize, and check the handle movement against the surrounding finished surfaces. For a new countertop, have the installer confirm the hole location and required diameter from the exact technical drawing before cutting.

Do not use a photograph to set these dimensions. If an existing hole will be reused, check its position and condition along with the available room for the mounting hardware beneath the finished surface.

Installation and everyday care

Follow the installation instructions for 9178TL-RB-DST and the instructions for any connected equipment. Have the installer compare the site measurements, water connections and mounting arrangement before work begins. Identify the shutoff valves, protect the finished surfaces and inspect the existing supply connections. Use the specified fittings rather than forcing an adapter or changing a connection based on appearance.

After installation, check all accessible connections while the fixture is operating and again after it has been turned off. For everyday cleaning, start with a soft damp cloth and follow the finish care instructions for the exact model. Check the finish care instructions before using any cleaner or cleaning pad. Keep the outlet and moving controls free of accumulated residue using the approved cleaning method.

Treat installation and care as part of the complete sink or shower setup, including any connected drain, filtration or heating equipment.

How should ShieldSpray be used for cleaning dishes? Undock the wand and bring it close to the dish before pressing the ShieldSpray button. Delta's instructions position the dish halfway through the surrounding water bubble and advise against pressing the button while the wand is docked. The cleaning function returns to the aerated setting when its button is released.

Performance is optimized above 35 psi; the spray pattern can look different at lower pressure.

How should the Venetian Bronze surface be cleaned? For routine care of this Venetian Bronze faucet, use a damp non-abrasive sponge or soft cloth, then dry the surface with a clean soft cloth. Drying removes droplets before they leave mineral residue. Delta recommends warm water for water spots; its general finish guidance allows equal parts white vinegar and water for hard-water stains, followed by a thorough rinse.

Avoid abrasive cleaners, harsh polish, bleach-based products, and products intended to remove rust or tarnish. Before the installer starts, keep the model instructions and the intended fittings together at the work area. A dry fit can help reveal clearance or connection issues before the mounting hardware is tightened. Keep the protective packaging until the surfaces have been inspected, and use the manufacturer procedure when flushing or testing the completed installation.

When moving from the old fixture to the new one, inspect the accessible mounting surface before fitting the replacement. A damaged or uneven surface can require separate preparation; have the installer decide how to address it before tightening the new mounting hardware. Keep the working area clear so each connection can be checked without reaching around stored items.

How do I plan access and future maintenance?

Keep the shutoff valves and faucet connections accessible. On a faucet with a pull-down or pull-out wand, avoid storage that catches the hose or interferes with its return. Check the hose path after reorganizing the cabinet, because the available space can change as more items are stored below the sink. Save the exact SKU, finish name and installation paperwork with the project records.

Photographs of accessible connections can help identify the arrangement later without dismantling finished surfaces. When a service part is needed, match the manufacturer part diagram for the exact model rather than choosing a visually similar component. Check for visible moisture after service, and inspect any area where tubing or a hose could rub against another object. If operation changes, consult the troubleshooting steps for this model before replacing unrelated parts.

Keep a record of any separately installed equipment and its model number as well. This makes future filter changes, plumbing service or fixture replacement easier to plan and helps the next person working on the installation understand how the components are connected.

How much room should nearby sink accessories have? The operating guide recommends positioning a soap dispenser or beverage faucet at least five inches from the faucet. Allow for that spacing when laying out a multi-hole sink, as well as the sensing zone around the main spout and handle. This is a placement recommendation for nearby fixtures. When documenting the installation, record the mounting arrangement and the location of shutoff valves.

Keep separate records for any connected equipment so its maintenance schedule can be followed independently. If a later repair requires moving hoses or tubing, check their routing again after the work and make sure the cabinet can close without pinching a connection. Keep a clear distinction between the faucet model and any separately connected appliance or treatment system in your records.

Replacement cartridges, aerators and mounting parts should be selected from the correct model diagram. A component from another fixture in the same collection may look similar while having a different connection, length or mounting arrangement.

What should I check before ordering?

Before ordering, compare the SKU 9178TL-RB-DST, finish name and configuration with the item you intend to replace. Read the current listing and inspect the available item photos, including close views where supplied. Confirm which parts are present with the actual unit: do not assume that the standard manufacturer package and an individual store listing have identical contents.

If an accessory is needed for your installation, identify its exact part number and check whether it must be purchased separately. Make a short checklist of the mounting fittings, connection fittings and other items your installer requires. Compare that checklist with the listing before arranging the work. Select the correct store view and check the current quantity and fulfillment choices there.

Bring the model number and installation measurements when asking about fit so the advice refers to the specific fixture and location. For a multi-item project, make sure the finish and model on each order line match the room plan. Similar finish names across different brands may have different tones.

Compare samples or actual item photos where possible, and confirm any separately selected dispenser, drain or trim part on its own listing instead of assuming it accompanies the faucet. If the item will be collected for a scheduled installation, check the current store selection and listing before making the trip. Keep the product identification with the order information so the exact model and finish can be compared at collection.

Have any fit questions resolved while the measurements and technical drawing are available, rather than relying on a collection name from memory.
