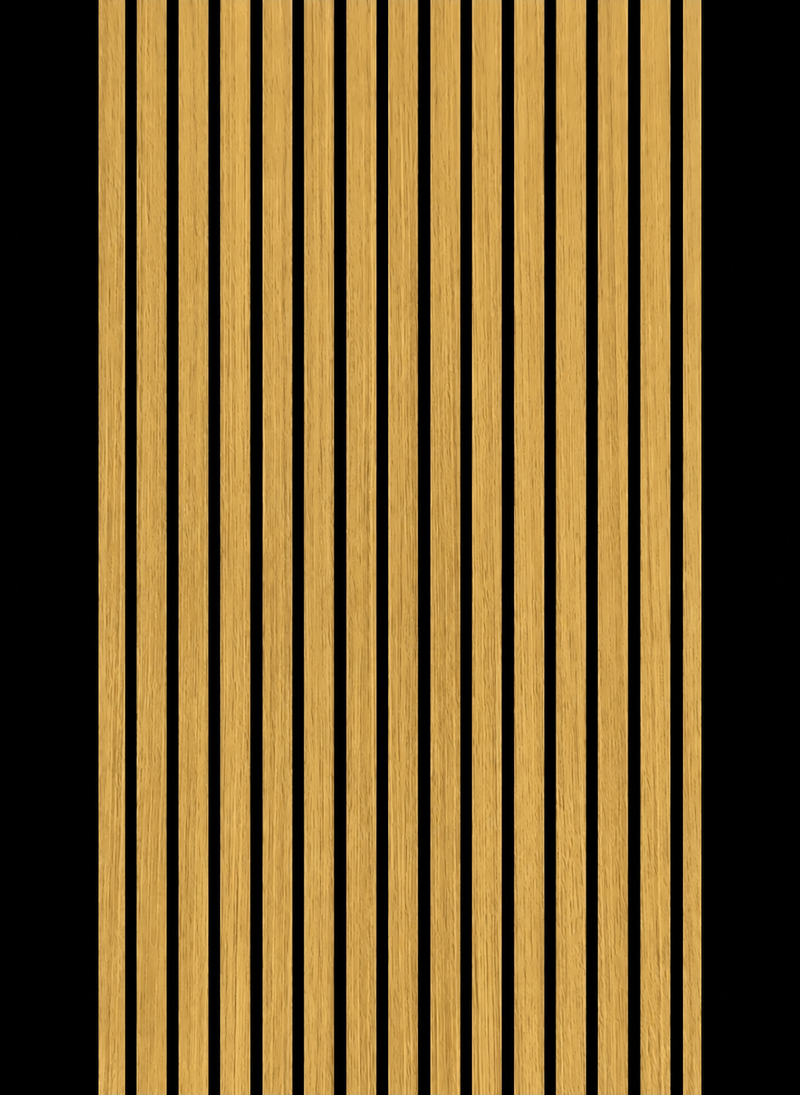

Amber XL 24x120 Straight Acoustic Wall Panel

Draw the panel field at scale

Measure the complete wall, then mark the area you want to cover with Amber XL. Include baseboards, crown molding, switches, outlets and anything projecting from the wall. Decide whether the field stops at the furniture width, fills a recess or extends to both corners. Put the two-foot nominal panel widths on the drawing to see the planned joints and final border pieces.

Use measured panel dimensions for the final layout, since a title format cannot establish tolerances or usable edge width.

Compare the finish in its setting

The ten-foot catalog height gives you a way to plan a tall wall with fewer horizontal changes than an eight-foot format. Check the full height at both corners and around crown molding. A wall that appears ten feet high may leave a different usable panel height after the base and top finish are included.

Plan joints before cuts

Choose a starting line and mark where each full panel would land. Starting from one corner can leave a narrow piece at the opposite side; a centered field can distribute the cuts across both sides. Compare the visible border widths and the position of interruptions in the straight pattern.

If the drawing includes a horizontal joint, inspect how two actual panel ends meet and obtain the approved joint detail before preparing the cut list.

Worked panel quantity example

If a rectangular field were exactly 8 feet wide by 10 feet high, and the supplied panels had a usable width of exactly two feet and the full stated height, 4 uncut panels would span it. The field is 80 square feet; each nominal rectangle is 20 square feet, and 4 times 20 equals 80. This is a geometry example, not a promise of finished coverage.

Edge treatment, gaps, trimming and the mounting design can alter the working dimensions. An opening may reduce visible area while still requiring a complete panel for surrounding cuts.

Make the order traceable

Use the complete SKU DE804123-2-24120 when checking the panel at pickup. Similar-looking panels can have different dimensions or backing. Confirm the selling unit and count the actual pieces the cut list needs. Keep the approved sample or a photo of its identifying label with the drawing. Choose desired repair material while reviewing this order, rather than assuming an identical finish will be available later.

Review the wall and attachment system

Have the installer inspect the wall and identify the exact instructions supplied with this panel. Material, backing, weight and the supporting wall all matter when selecting an attachment method. Include edge and outlet details in that review. Do not prepare a universal glue or screw pattern from an image or instructions for another panel; the mounting method must be verified for the stocked item.

Trial-fit the composition

Compare several panels in the planned sequence and verify the overall width, top line and border cuts before permanent attachment. Mark each piece against the drawing so a cut prepared for an outlet stays in its intended position. Check how exposed ends and corners will be finished, and add trim or edge treatments to the materials list after compatibility is confirmed.

Choose care from the actual finish

Ask for the exact surface-care guidance and keep it with the project record. Cleaning permissions depend on face and backing materials, which are not established here. Avoid choosing wet cleaning, steam, solvent or sanding from the finish name. Identify the surface first and use its recommended method on an inconspicuous area before treating the full field.

Does the title prove a sound rating?

No exact NRC, absorption coefficient or sound-isolation rating was verified. If acoustic performance is required, obtain the report for this panel and the tested mounting arrangement. A decorative field and a complete acoustic treatment plan can have different requirements.

Can nominal area determine my order?

Use it to compare simple layouts, then confirm usable dimensions and the selling unit. The example assumes full-width, full-height pieces without joint or edge losses. A measured cut list is more useful than area alone when the wall has openings or uneven borders.

Are hardware and edge trim included?

The listing does not establish an accessory package for this exact SKU. Confirm the supplied pieces and approved mounting or edge products before planning the installation around them.
