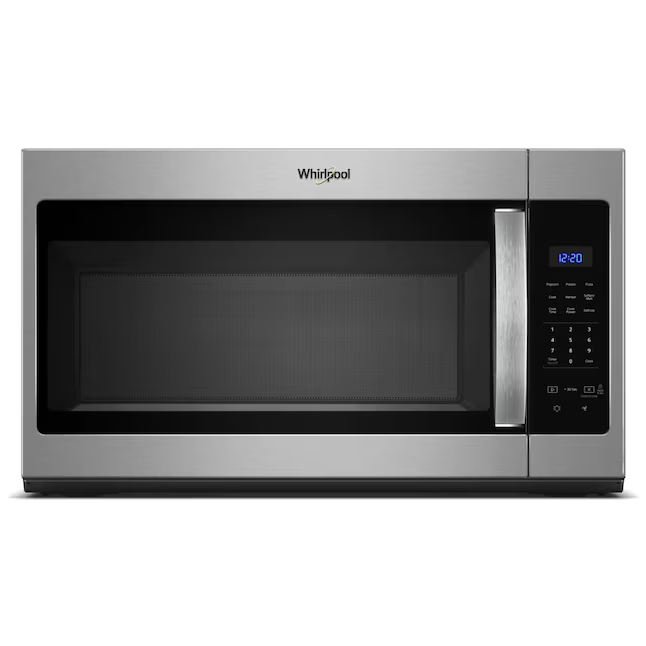

Whirlpool 1.7-cu ft Over-the-Range Microwave (Fingerprint Resistant Stainless Steel)

Check dish access at the planned height

Measure the plates, bowls and microwave-safe dishes you commonly use, including handles and taller lids. The 1.7-cu-ft capacity is a useful comparison, but it does not establish that every larger container can rotate comfortably or be removed easily. Consider how high the microwave will sit over the range and whether each user can safely reach its contents. Think through carrying a warm bowl from the door to the adjacent counter.

Review those everyday movements alongside the interior size and control layout before choosing an over-the-range format. Keep a convenient landing surface in the layout so removing a dish does not require carrying it back across the active range.

Choose controls and ventilation around regular tasks

Presets can help with familiar microwave jobs, while Add 30 Seconds provides a simple way to start or extend an appropriate cooking task. Compare those options with the way you currently reheat, defrost and prepare snacks. The two ventilation settings and separate cooktop light are also part of daily use when the range is operating. Consider whether the control panel and lighting adjustment are comfortable at the planned location.

Use the exact finish suffix when comparing appearance so fingerprint-resistant HZ specifications are not applied to a plain-stainless HS model.

Choose the routine behind the convenience controls

List a few microwave tasks that recur in your household, such as reheating a plate, preparing a snack or following a packaged-food instruction. Compare their directions with the model's presets and ordinary time selection, and identify when Add 30 Seconds is useful under the owner's guidance. A familiar button can simplify selecting time, but it does not make every quantity or dish use the same preparation method.

If more than one person uses the microwave, keep the correct microwave-safe dishes easy to find and show each person how the appliance's controls operate. Also include the cooktop light and fan in that introduction, because this appliance serves the range area even when its cavity is empty. The HZ model reference should remain with the record so lighting, finish and filter questions are answered for this version.

This creates a clearer comparison than choosing only from the count of presets.

Review the mounting opening and existing equipment

Whirlpool's feature sheet lists a minimum opening of 30 inches wide and 12 inches deep, but the complete installation instructions govern the wall, upper cabinet, connection and cooking-surface requirements. Have the installer compare the actual opening with those instructions. Include the door path and nearby cabinet fronts in the review. A previous microwave's bracket and drilled holes are not automatically suitable for a replacement.

Give the installer WMH31017HZ and the intended ventilation route so the correct mounting arrangement and configuration are checked together.

Plan separate turntable and filter care

Follow the manufacturer's guidance for cleaning the interior, control panel and fingerprint-resistant exterior. The turntable plate has a dishwasher-safe cleaning option, so remove and handle it as directed rather than cleaning every part the same way. Allow the appliance and removable parts to cool before appropriate handling. Include access to ventilation filters in the mounting plan and follow their care instructions for the installed configuration.

Keep microwave-safe dishes organized so the correct equipment is easy to choose for the next cooking task.

Worked example: read the opening and body widths separately

Whirlpool's listed minimum opening width is 30 inches, while the body width is 29.9375 inches. The difference is 0.0625 inch, or one-sixteenth inch, across those two figures. That arithmetic is not a new side-clearance instruction or approval of the mounting surface. Have the installer use the full model instructions for the bracket, upper cabinet, ventilation and electrical arrangement.

The 12-inch minimum opening-depth figure and the 15.5625-inch body depth likewise use planning descriptions that should be checked on the exact drawing rather than subtracted to invent a permitted projection. For replacement, record the finished cabinet and wall measurements along with the previous mounting arrangement, then let the new model's requirements govern.

A close nominal width match can make the appliance look suitable from the front while important mounting and service details remain unresolved.

What does the HZ suffix identify?

It is the Fingerprint Resistant Stainless Steel version. WMH31017HS is plain stainless. Match the complete model number when comparing finishes and source documents.

Is the 300-CFM figure guaranteed in every kitchen?

It is a ventilation motor-class rating. The completed installation and duct configuration affect airflow. Review the exact mounting and ventilation instructions when planning the kitchen.

Can the turntable plate go in the dishwasher?

The model's removable turntable plate is specified as dishwasher safe. Follow the instructions for removal and cleaning, and distinguish it from other microwave or ventilation parts.

What should I compare when replacing another over-range microwave?

Check the mounting opening, wall and upper cabinet, bracket, ventilation route, electrical connection and door access. Similar external widths do not establish that the existing installation hardware can be reused.

What should I check when replacing the cooktop lamp?

This exact model is documented with incandescent cooktop lighting. Use the WMH31017HZ owner and parts information to identify the approved replacement rather than selecting a lamp solely because it fits a socket or is described as a generic appliance bulb. Confirm the applicable part, rating and replacement procedure for the actual unit, and follow the manufacturer's handling instructions.

If an LED alternative is desired, have its approval for this model confirmed instead of assuming the lighting specification changes automatically with the purchase of a different bulb. Keep the lamp reference with the microwave and filter records so future service starts with the complete HZ model. Lighting and cavity capacity are separate features, and a similar stainless over-range microwave can have a different original light configuration.

Specify that you are requesting the cooktop-light part, so the inquiry is not confused with cavity lighting.
