Delta Essa Single Handle Pull-Down Kitchen Faucet in Chrome, 9113-DST

$79.99/ unit$205.64

SKU: 9113-DST

$79.99per item

Subtotal$79.99

Current stock at Marietta

Store pickup

2 units available

Ask our team to confirm your quantity and arrange pickup before visiting.

Fulfillment
In-store pickup only
Check other stores & update ZIP
  • Marietta

    2 units available

    119 Cobb Parkway North, Suite D, Marietta, Georgia 30062

    MY STORE
  • Norcross

    NO STOCK AVAILABLE

    6755 Jimmy Carter Blvd, Norcross, Georgia 30071

Checking your Project List…

Adding an item does not reserve stock.

Questions about this item?

Call Marietta · (770) 874-2254Call Norcross · (770) 758-3223

Ask us to confirm this item’s condition and pickup availability. Item reference: 9113-DST. Purchases are completed in store. In-store pickup only.

Specifications

Dimensions

Maximum deck thickness (inches)
2.5
Number of handles
1
Spout Height (inches)
8.75
Spout Reach (inches)
9.375
Maximum flow rate (GPM)
1.8
Spout swivel (degrees)
360

Details

Faucet application
kitchen
Faucet type
pull-down
Collection name
Essa
Design style
Modern/Contemporary
Fixture color family
chrome
Manufacturer finish
Chrome
Finish type
polished
Handle type
lever
Valve type
ceramic disc
Sprayer configuration
pull-down
Voice Controlled
false
Smart Compatible
false
Built-in water filter
false
Deck Plate Included
true
Side Spray Included
false
Supply Lines Included
true
Secure Docking
true
Easy Clean Nozzles
True
Fingerprint Resistant
false
Rust Resistant
true

Installation & Warranty

Mounting location
deck mount
Supply connection size
3/8-inch compression
ADA compliant
true
NSF 61 certified
true

Product details

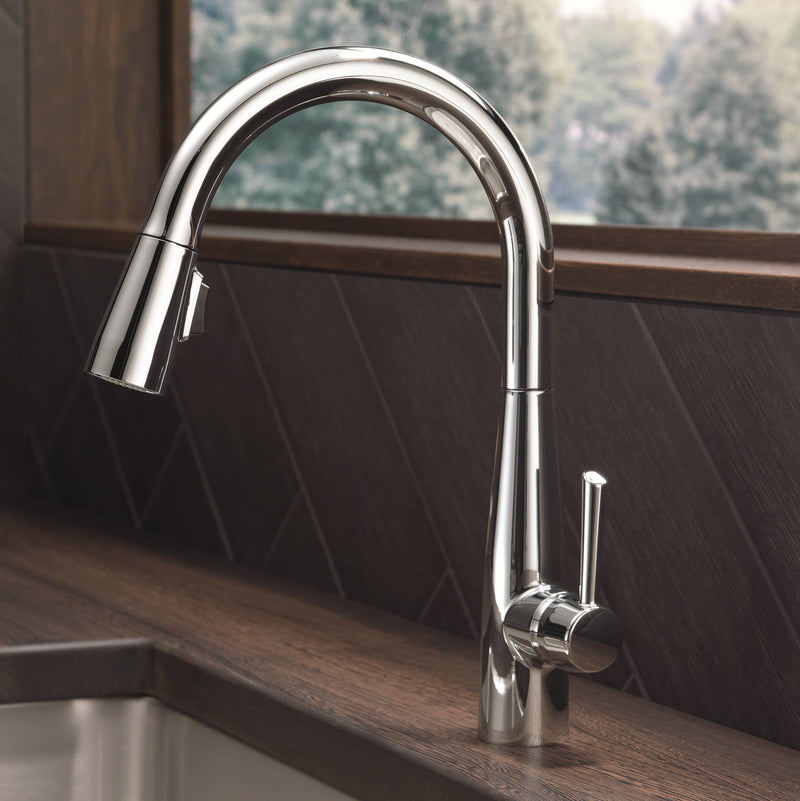

The Delta Essa 9113-DST is a single-handle pull-down kitchen faucet in Chrome. Its continuous high arch, tapered body and upright side lever create a simple modern silhouette. The merchant lifestyle image shows a bright reflective finish beside the sink, with the spray wand following the spout's curve when docked. This manual model combines a compact control position with an outlet that can move around the basin.

The high-arc spout rotates through 360 degrees, and the pull-down system uses a 20-inch retractable hose for filling and rinsing. MagnaTite magnetic docking holds the wand at the spout when parked. Touch-Clean rubber spray holes allow mineral deposits to be wiped from the spray face. The ADA-compliant lever adjusts both water temperature and volume from one control. The documented wand offers an aerated stream or spray.

Delta specifies a 1.8 GPM maximum flow at 60 psi. The faucet fits one hole or a three-hole arrangement on 8-inch centers, using an optional deck plate in the manufacturer's configuration. DIAMOND Seal Technology reduces potential leak points. Integrated InnoFlex PEX supply tubes and 3/8-inch compression connections complete the documented water-delivery arrangement for this Chrome Essa model.

The Essa specification drawing gives an 8-3/4-inch spout outlet height and a 9-3/8-inch horizontal reach, useful measurements for comparing the faucet with a sink bowl and the position of its mounting hole. Delta also calls for at least 1-1/2 inches of clearance to the backsplash. The drawing allows a maximum deck thickness of 2-1/2 inches with the 11-inch escutcheon, or 3 inches for the other illustrated mounting arrangements.

These are configuration limits, so the countertop, sink flange, and space behind the handle should be checked together when planning the fit.

The wand’s backflow protection uses two independently operating check valves arranged in series. Delta describes these as integral, non-serviceable parts of the spray assembly. The installation sheet also explains how the magnetic docking releases: the head can be pulled straight from the spout or turned 90 degrees in either direction so the magnets repel and separate.

This gives the pull-down head a deliberate release movement before directing it into the basin. The same document excludes use with a portable dishwasher connected to the faucet.

Buying guide

Choosing this faucet

Use the complete model number 9113-DST when comparing this kitchen faucet with other fixtures. The finish suffix and feature suffixes help distinguish similar looking products, so compare the exact model rather than only the collection name. Choose around the tasks performed at this sink: filling containers, rinsing produce or washing dishes. Compare the spout position with the bowl center and consider how the handle will be reached.

For a secondary prep sink, use the actual bowl dimensions rather than assuming a smaller countertop requires a particular faucet size. Use the product details and specifications above to narrow the choice, then compare the manufacturer drawing with the space where the fixture will be installed. Check the actual item photos and current listing information for the unit you are considering.

A model reference image shows the design; it does not establish the condition or contents of an individual item. Think about how the fixture will be used by everyone in the household, and where frequently used containers or dishes will sit during filling or rinsing.

For a replacement project, decide which parts of the existing setup will stay: the sink, countertop, drain, water treatment equipment and supply valves can each affect the final choice. Write down the problem you want the new fixture to solve, such as reaching a different part of the bowl or making the controls easier to reach. Compare that goal with the exact model features above.

Consider the objects that are routinely brought to this sink, including tall bottles, trays or large bowls. Check whether they fit under the outlet or whether a movable wand would need to be used. The bowl depth and faucet position work together, so compare the actual dimensions of both when planning a comfortable filling area.

Planning the sink layout

Measure the mounting holes, countertop thickness and space between the faucet and backsplash. Check the full handle movement and the clearance under nearby cabinets or shelves. If the model has a moving spray wand, leave a clear path beneath the sink for the hose and its return movement. A useful planning sketch shows the mounting position, bowl outline, nearby fittings and plumbing route.

Measure from the finished surfaces that will remain after the project, including tile, a new backsplash or a replacement countertop. Compare spout reach and overall height as separate dimensions; the height of the outlet is different again. Do not rely on the apparent size in a product photo. If covering unused mounting holes is part of the plan, check the exact accessory and its dimensions before drilling or ordering.

Keep enough space to tighten the mounting hardware and to reach the connections with suitable tools. Resolve fit questions before removing the existing fixture, particularly where the sink or countertop cannot easily be modified.

Which mounting measurements matter for an existing sink? Compare the mounting-hole location with the bowl: the 9-3/8-inch reach runs horizontally from the faucet’s centerline to the outlet. Check backsplash space and countertop thickness together. For three-hole mounting, the drawing uses 8-inch centers and an 11-inch escutcheon. Match the chosen arrangement to its thickness limit in the drawing before selecting the faucet.

What should be planned beneath the sink for the supply tubes? Excess PEX can be looped, with a recommended minimum bend diameter of 8 inches. Allow room for broad loops before deciding to shorten a line. Delta prohibits pipe compound and other sealants on these water-line connections. Its instructions also require flushing debris from the outlet into a bucket before connecting the hose and sprayer.

Check both the space above the sink and the space below it. A cabinet shelf, garbage disposal or storage organizer may restrict access even when the countertop has room for the faucet. Make a simple cardboard outline from the manufacturer drawing if the position is difficult to visualize, and check the handle movement against the surrounding finished surfaces.

For a new countertop, have the installer confirm the hole location and required diameter from the exact technical drawing before cutting. Do not use a photograph to set these dimensions. If an existing hole will be reused, check its position and condition along with the available room for the mounting hardware beneath the finished surface.

Installation & care

Installation and everyday care

Follow the installation instructions for 9113-DST and the instructions for any connected equipment. Have the installer compare the site measurements, water connections and mounting arrangement before work begins. Identify the shutoff valves, protect the finished surfaces and inspect the existing supply connections. Use the specified fittings rather than forcing an adapter or changing a connection based on appearance.

After installation, check all accessible connections while the fixture is operating and again after it has been turned off. For everyday cleaning, start with a soft damp cloth and follow the finish care instructions for the exact model. Check the finish care instructions before using any cleaner or cleaning pad. Keep the outlet and moving controls free of accumulated residue using the approved cleaning method.

Treat installation and care as part of the complete sink or shower setup, including any connected drain, filtration or heating equipment.

How should the Chrome finish be cleaned? Wipe with a soft damp cloth or non-abrasive sponge, then dry with a soft cloth. Removing droplets helps prevent mineral residue as water evaporates. Use warm water for water spots. Delta’s finish-care guidance allows equal parts white vinegar and water for hard-water staining, followed by a thorough rinse. Avoid abrasive pads, polish, bleach-based products, and rust or tarnish removers.

Before the installer starts, keep the model instructions and the intended fittings together at the work area. A dry fit can help reveal clearance or connection issues before the mounting hardware is tightened. Keep the protective packaging until the surfaces have been inspected, and use the manufacturer procedure when flushing or testing the completed installation.

When moving from the old fixture to the new one, inspect the accessible mounting surface before fitting the replacement. A damaged or uneven surface can require separate preparation; have the installer decide how to address it before tightening the new mounting hardware. Keep the working area clear so each connection can be checked without reaching around stored items.

Product FAQs

How do I plan access and future maintenance?

Keep the shutoff valves and faucet connections accessible. On a faucet with a pull-down or pull-out wand, avoid storage that catches the hose or interferes with its return. Check the hose path after reorganizing the cabinet, because the available space can change as more items are stored below the sink. Save the exact SKU, finish name and installation paperwork with the project records.

Photographs of accessible connections can help identify the arrangement later without dismantling finished surfaces. When a service part is needed, match the manufacturer part diagram for the exact model rather than choosing a visually similar component. Check for visible moisture after service, and inspect any area where tubing or a hose could rub against another object. If operation changes, consult the troubleshooting steps for this model before replacing unrelated parts.

Keep a record of any separately installed equipment and its model number as well. This makes future filter changes, plumbing service or fixture replacement easier to plan and helps the next person working on the installation understand how the components are connected.

Is the hose length the same as the pull-down reach? These are different measurements. Delta lists RP80522 as a 62-inch replacement hose. Much of it runs through the faucet and beneath the counter, so its total length does not describe the wand’s above-sink travel. Use the model’s listed assembly and confirm its connectors before replacement.

Delta specifies an RP60911 clip beneath the sink and explains that the hose is not universal across its kitchen models.

Which spray assembly matches this Chrome Essa model? Delta identifies RP80524 as the Chrome pull-down spray assembly for 9113-DST. Its parts guidance describes pressing the connection tab while unscrewing the wand from the hose. Check the exact model and finish when selecting a replacement; appearance alone does not establish compatibility. The RP80524 page lists 1.8 GPM at 60 psi and says no higher-flow replacement assembly is available for this model.

Can a little water drain after the handle is closed? Delta says a small amount may briefly drain after shutoff from the flexible hose. Distinguish this short drainage from continuing flow requiring troubleshooting. When documenting the installation, record the mounting arrangement and the location of shutoff valves. Keep separate records for any connected equipment so its maintenance schedule can be followed independently.

If a later repair requires moving hoses or tubing, check their routing again after the work and make sure the cabinet can close without pinching a connection.

What should I check before ordering?

Before ordering, compare the SKU 9113-DST, finish name and configuration with the item you intend to replace. Read the current listing and inspect the available item photos, including close views where supplied. Confirm which parts are present with the actual unit: do not assume that the standard manufacturer package and an individual store listing have identical contents.

If an accessory is needed for your installation, identify its exact part number and check whether it must be purchased separately. Make a short checklist of the mounting fittings, connection fittings and other items your installer requires. Compare that checklist with the listing before arranging the work. Select the correct store view and check the current quantity and fulfillment choices there.

Bring the model number and installation measurements when asking about fit so the advice refers to the specific fixture and location. For a multi-item project, make sure the finish and model on each order line match the room plan. Similar finish names across different brands may have different tones.

Compare samples or actual item photos where possible, and confirm any separately selected dispenser, drain or trim part on its own listing instead of assuming it accompanies the faucet. If the item will be collected for a scheduled installation, check the current store selection and listing before making the trip. Keep the product identification with the order information so the exact model and finish can be compared at collection.

Have any fit questions resolved while the measurements and technical drawing are available, rather than relying on a collection name from memory.
